With variable speed, adjustable working pressure, on board batteries.
Planetary grinding and polishing machine for large surfaces, with variable speed, adjustable working pressure, on board batteries.

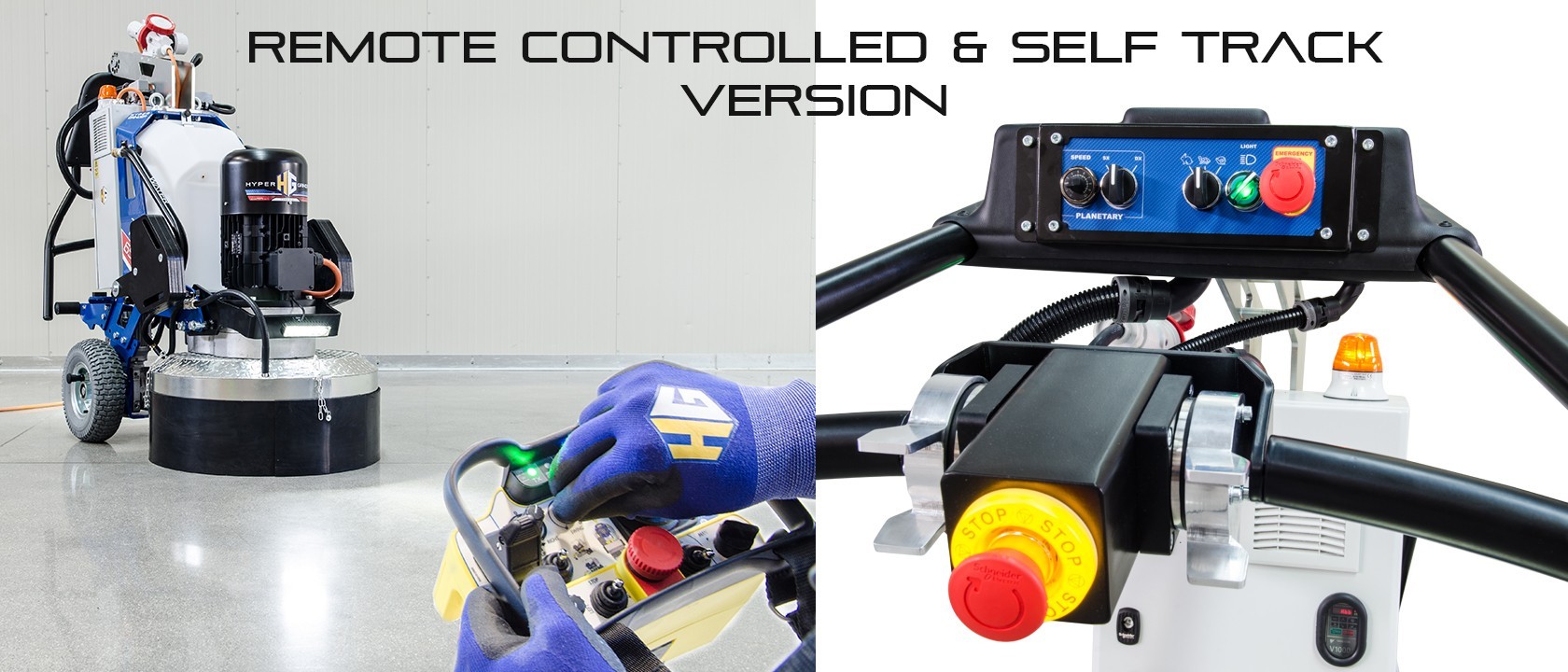

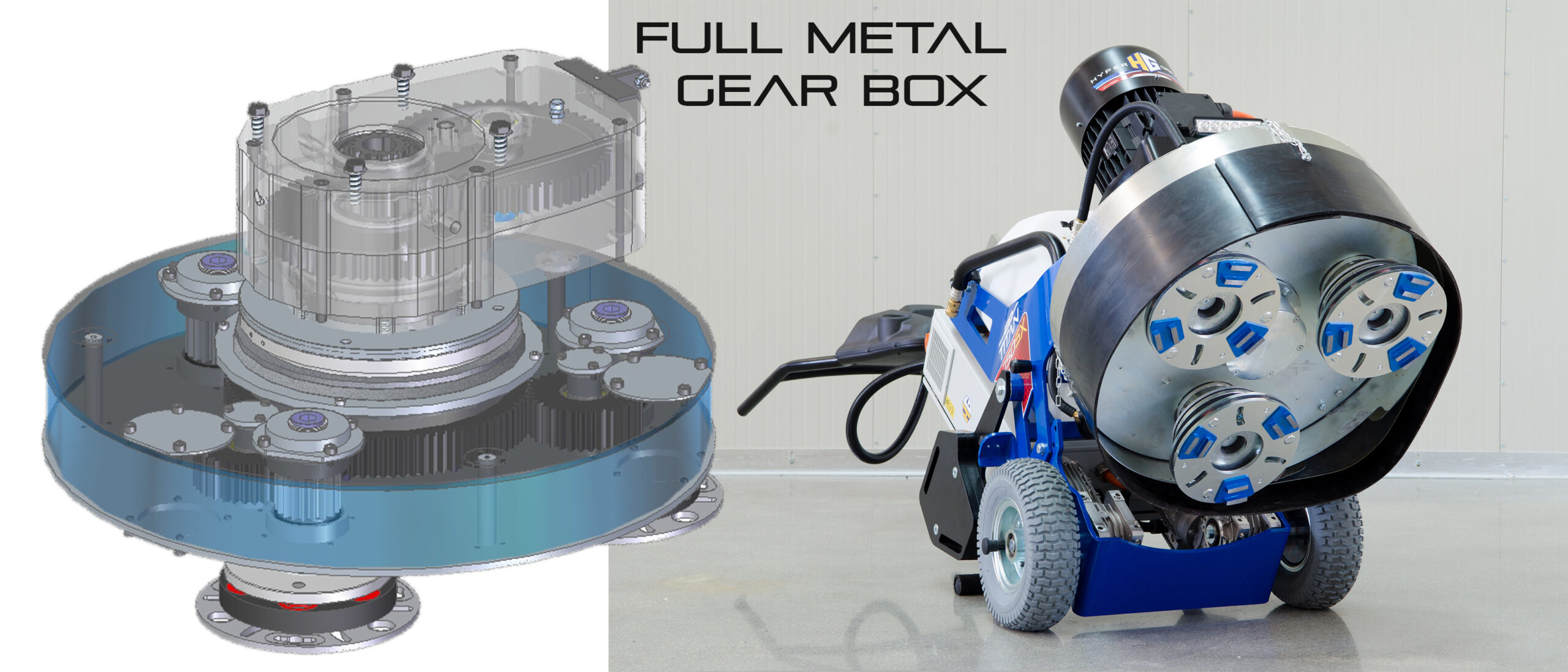

• Tempered stainless steel planetary and gear box. Fully geared transmission. • Third wheel for easy transportation and for operations on very large surfaces (OPTIONAL). • Compact and handy. • All functions available on remote controls. • Tools free quick attachment system for diamond tools. • Smoothing and preparation of all types of floors. • Unevenness removal on concrete. • Removal of resins, glues, paints and other residues. • High glossy mirror look polishing of marble and granite. • High glossy mirror look polishing of industrial concrete floors.
| Model | TITAN 750 M | TITAN 750 SX | TITAN 750 ST |
|---|---|---|---|
| Motor | 15 HP | 15 HP | 15 HP |
| Drive Inverter | 11 kW | 11 kW | 11 kW |
| Volt | 380-480 | 380-480 | 380-480 |
| Hertz | 50/60 | 50/60 | 50/60 |
| Amp | 25 | 25 | 25 |
| Motor speed rpm | 300-1300 rpm | 300-1300 rpm | 300-1300 rpm |
| Larghezza Lavoro | 750mm | 750mm | 750mm |
| Tools Dimension | 3x240mm | 3x240mm | 3x240mm |
| Liquids Tank | 46 lt | 46 lt | 46 lt |
| Dimensions LxAxP cm | 145x145x80 | 145x145x80 | 145x145x80 |
| Weight | 360Kg | 423 Kg | 423 Kg |
| ESTIMATED PRODUCTION | |
|---|---|
| Concrete Polishing 7 step | 25-30m2 /h |
| Concrete Grinding 1 step | 100-130m2/h |
| Terrazzo Polishing 5 step | 30-40m2/h |
| Resin Removal 1 step | 100-150m2/h |
| Paint Removal 1 step | 100-150m2/h |
| Marble Polishing 5 step | 20-30m2 /h |
| Granite Polishing 7 step | 9-12m2/h |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
| Model | TITAN 750 SX/ST/M |
|---|---|
| Volume | 1.80 m3 |
| Size | 88x163x185 cm |
| Weight | 480 kg |
