With variable speed, floating head and radio control.

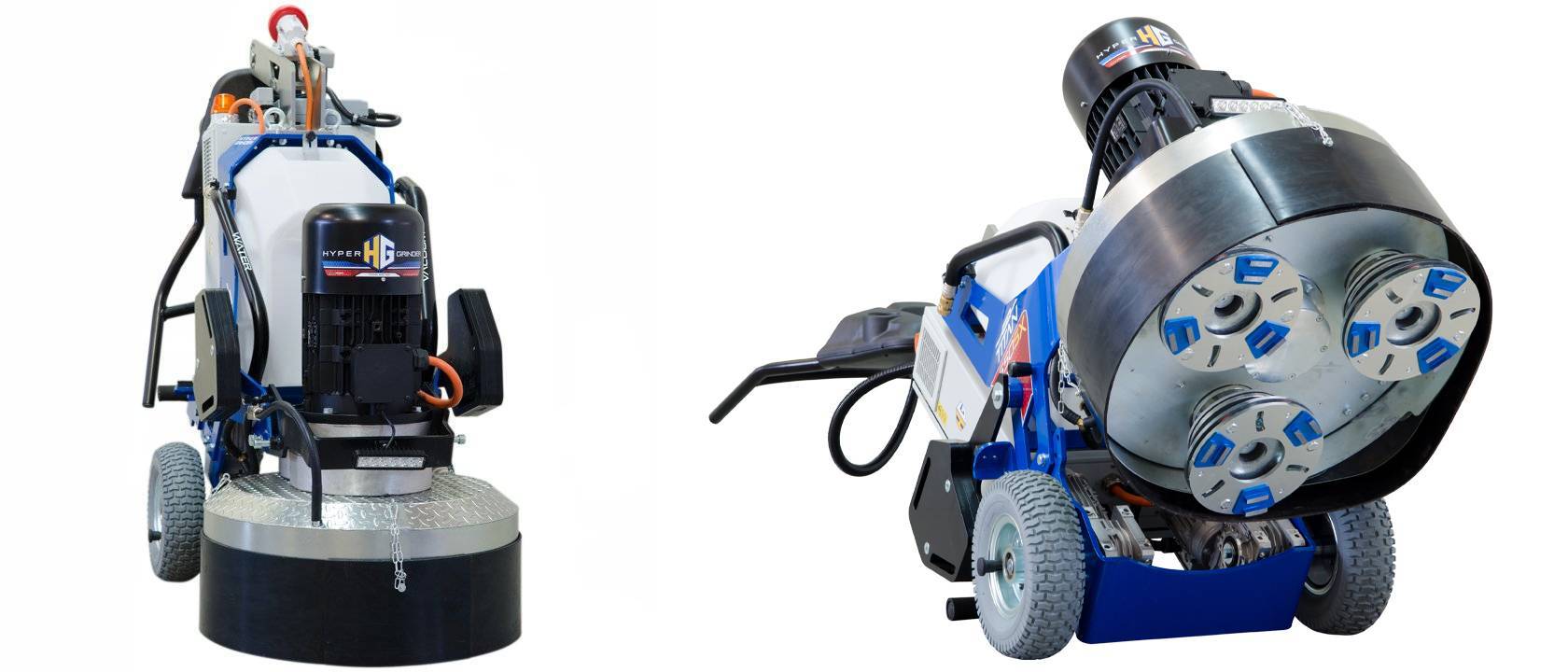

Remote-controlled planetary grinding and polishing machine for large surfaces, with variable speed, floating head and radio control.

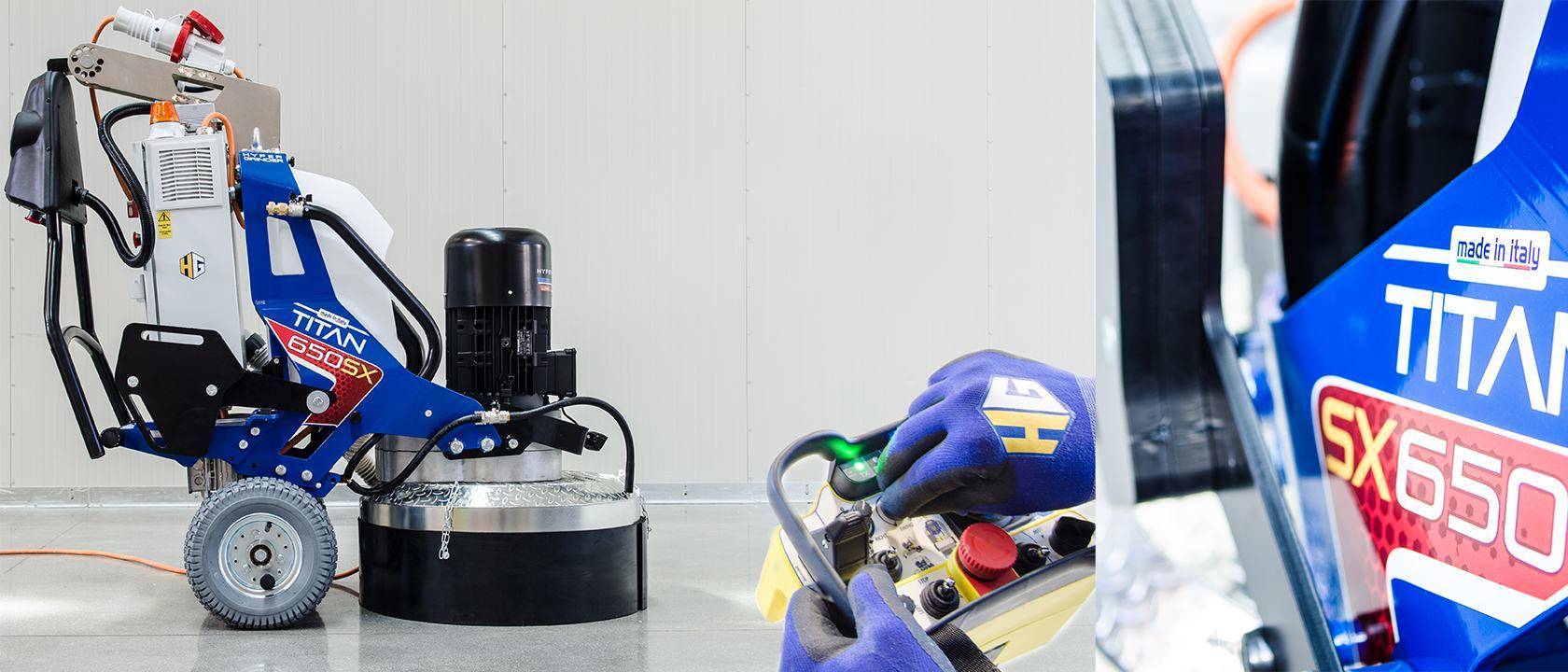

• Floating head. • Tempered stainless steel planetary and gear box. Fully geared transmission. • Compact and handy. • All functions available on remote controls. • On board batteries for machine self displacement. • Utensils free quick attachment system for diamond tools. • Smoothing and preparation of all types of floors. • Unevenness removal on concrete. • Removal of resins, glues, paints and other residues. • High glossy mirror look polishing of marble and granite. • High glossy mirror look polishing of industrial concrete floors.
| Model | TITAN 650 M | TITAN 650 SX | TITAN 650 ST |
|---|---|---|---|
| Motor HP max | 15 HP | 15 HP | 15 HP |
| Drive Inverter | 11 kW | 11 kW | 11 kW |
| Volt | 380-480 | 380-480 | 380-480 |
| Hertz | 50/60 | 50/60 | 50/60 |
| Amp | 25 | 25 | 25 |
| Motor speed rpm | 300-1300 rpm | 300-1300 rpm | 300-1300 rpm |
| Larghezza Lavoro | 650mm | 650mm | 650mm |
| Tools Dimension | 3x240mm | 3x240mm | 3x240mm |
| Liquids Tank | 46 lt | 46 lt | 46 lt |
| Dimensions LxAxP cm | 140x145x68 | 140x145x68 | 140x145x68 |
| Weight | -- Kg | -- Kg | -- Kg |
| ESTIMATED PRODUCTION | |
|---|---|
| Concrete Polishing 7 step | 20-25 m2/h |
| Concrete Grinding 1 step | 50-100 m2/h |
| Terrazzo Polishing 5 step | 20-30 m2/h |
| Resin Removal 1 step | 80-120 m2/h |
| Paint Removal 1 step | 80-120 m2/h |
| Marble Polishing 5 step | 12-25 m2/h |
| Granite Polishing 7 step | 8-10 m2/h |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
| Model | TITAN 650 SX/RX/AD |
|---|---|
| Volume | 1.80 m3 |
| Size | 150x145x85 cm |
| Weight | 385 kg |
