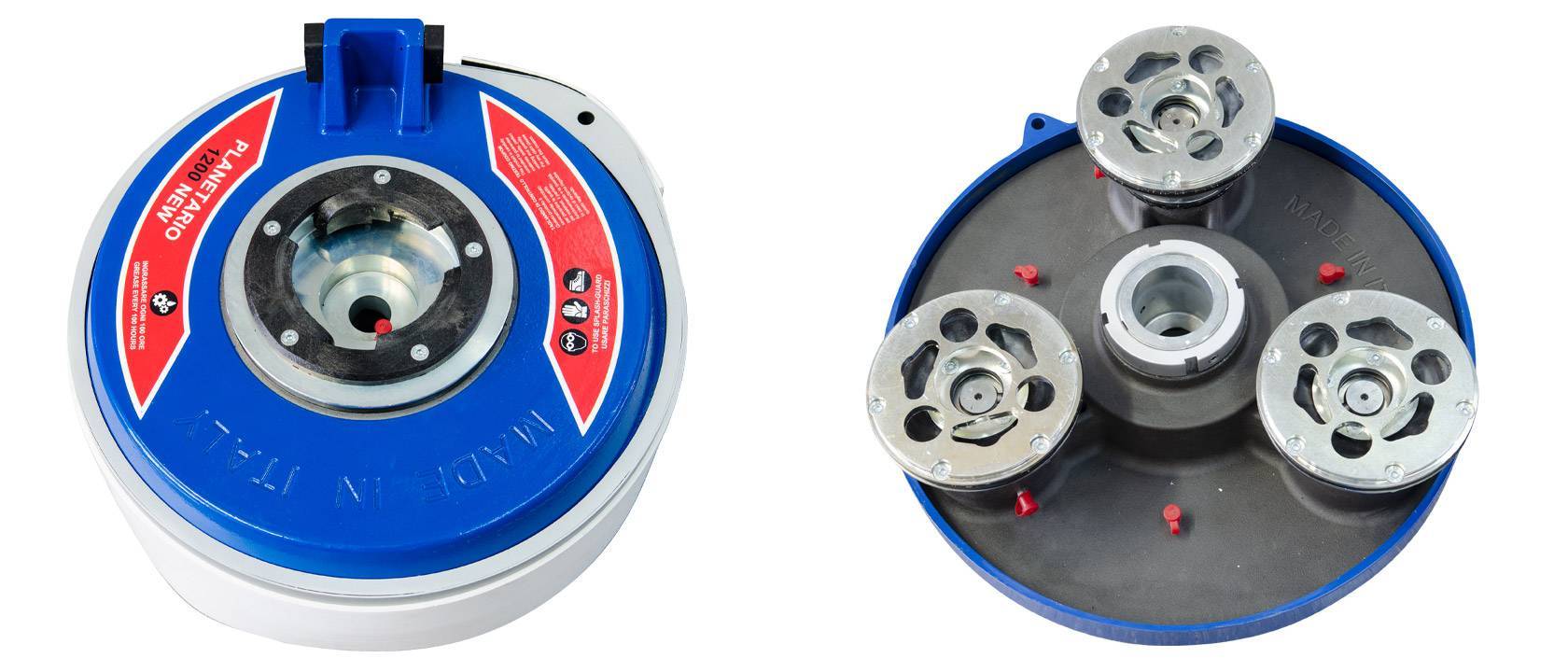

The H1200 mono-directional planetary features hardened steel gears.
High performance and compact multifunctional grinding and polishing machine. The H1200 mono-directional planetary features hardened steel gears. Ideal for preparation, grinding and polishing jobs in medium / large rooms. Thanks to the new elastic couplings on each tool holder, the H1200 planetary guarantees maximum reliability and manoeuvrability even in the most demanding grinding steps. The H1200 planetary can be released in few seconds to fit brushes or drivers for abrasive discs diam. 17 “/ 430mm expanding even more the basic versatility of the machine.

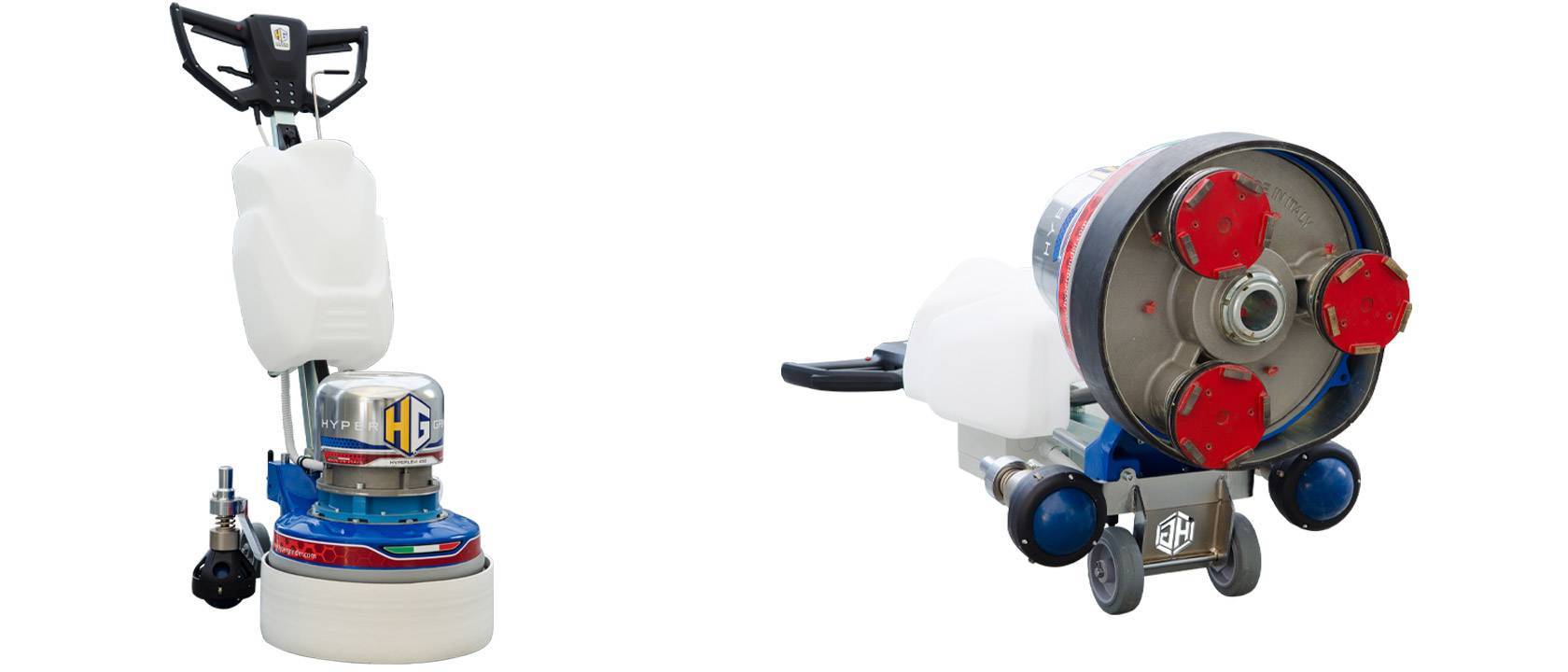

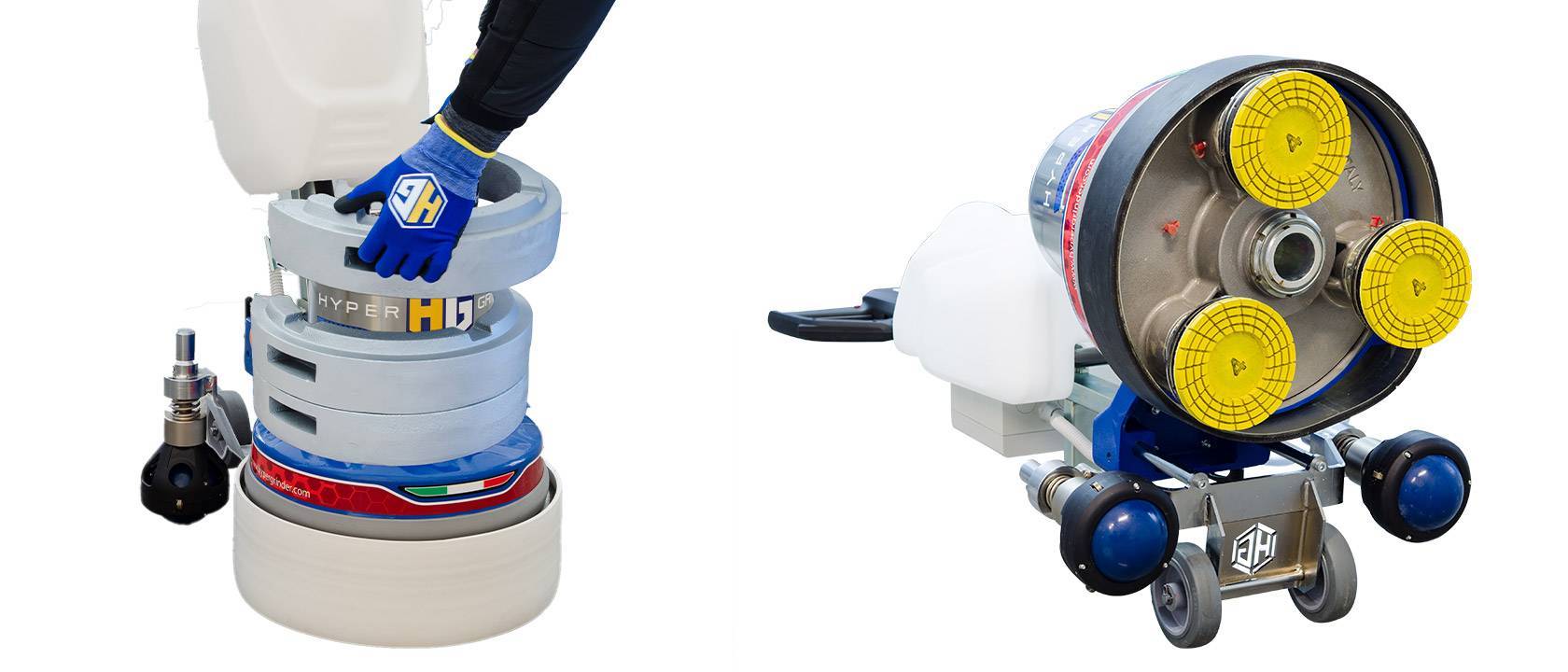

The 30-year experience in this field has made HYPERLEVI 450 one of the most versatile and reliable grinding and polishing machine in the world. Ideal for all types of floors processes such as grinding and polishing of marble, granite, stoneware, terrazzo, cement and industrial floors, or preparation of floors and surfaces, the removal of resins and glues and other types of treatments. Easy to carry to the job-site, it quickly divides into 3 parts.
| Model | HYPERLEVI 450 TOP | HYPERLEVI 450 VS TOP |
|---|---|---|
| Motor HP max | 4 HP | 4 HP |
| Volt | 220 | 220 |
| Hertz | 50/60 | 50/60 |
| Motor speed rpm | 155 | da 120 a 250 |
| Velocità utensili rpm | 1000 | da 600 a 1300 |
| Working width | 450mm | 450mm |
| Tools Dimension | 3x140mm | 3x140mm |
| Liquids Tank | 20 lt | 20 lt |
| Dimensions LxAxP cm | 65x135x49 | 65x135x49 |
| Weight Kg | -- | 112 |
| ESTIMATED PRODUCTION | |
|---|---|
| Concrete Polishing 7 step | 6-9m2/h |
| Concrete Grinding 1 step | 30-50m2/h |
| Terrazzo Polishing 5 step | 6-9m2/h |
| Resin Removal 1 step | 18-35m2/h |
| Paint Removal 1 step | 18-35m2/h |
| Marble Polishing 5 step | 6-9m2/h |
| Granite Polishing 7 step | 3-5m2 /h |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
| Model | HYPERLEVI 450 |
|---|---|
| Volume | 0.75 m3 |
| Size | 62x77x153 cm |
| Weight | 130 Kg |
