The DCT system allows you to choose to smooth use only using the rotation of the tools (DCT ON mode), or with the classic complete rotation of the planetary (DCT OFF mode).
The DCT system allows you to choose to smooth use only using the rotation of the tools (DCT ON mode), or with the classic complete rotation of the planetary (DCT OFF mode).

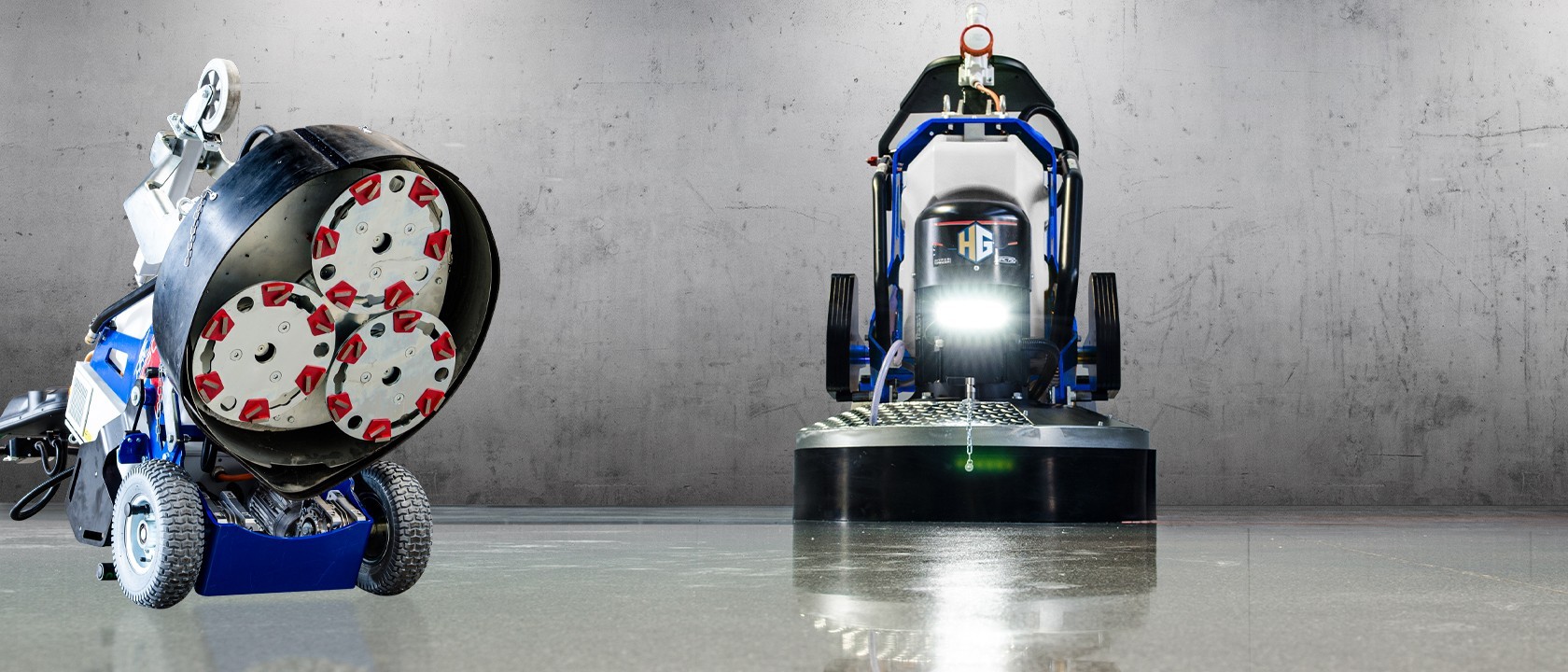

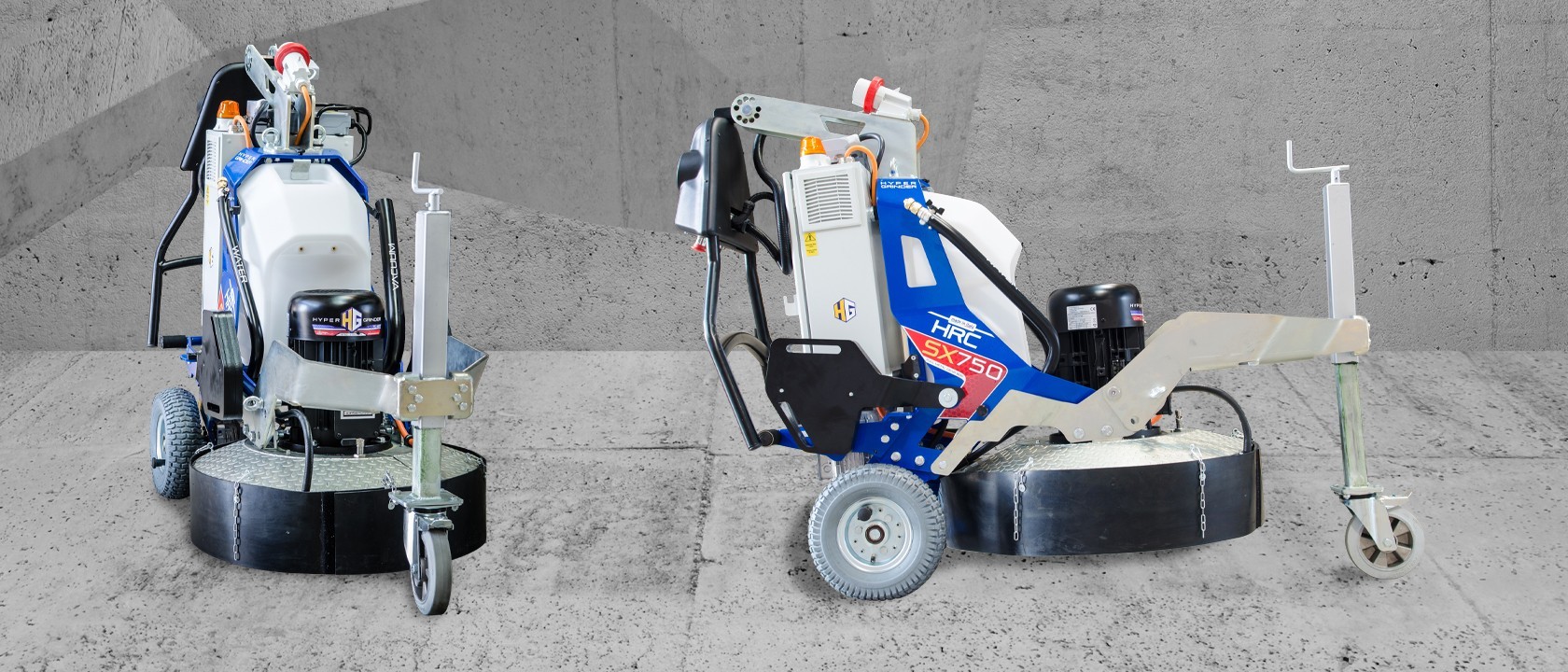

• Tempered stainless steel planetary and gear box. Fully geared transmission. • 180° overturning system for extra weight. The displaced weights increase the grinding pressure. The weights moved back facilitate the tilting operation for tool changes (Optional). • Third wheel for easy transportation and for operations on very large surfaces (Optional). • All functions available on remote controls. • On board batteries for machine self displacement. • Powerful front and rear LED spotlights (Optional). • Noise reduction levitating planetarium. • 2 Year Warranty: The GUARANTEE for machines equipped with “hour counter” is up to 2 years or 600 hours of work.
| Model | HRC 750 SX | HRC 750 RX | HRC 750 AD |
|---|---|---|---|
| Motor HP max | 15 HP | 15 HP | 15 HP |
| Drive Inverter | 11 kW | 11 kW | 11 kW |
| Volt | 380-480 | 380-480 | 380-480 |
| Hertz | 50/60 | 50/60 | 50/60 |
| Amp | 32 | 32 | 32 |
| Motor speed rpm | 600-1300rpm | 600-1300rpm | 600-1300rpm |
| Working width | 750mm | 750mm | 750mm |
| Tools Dimension | 3x340mm | 3x340mm | 3x340mm |
| Liquids Tank | 46 lt | 46 lt | 46 lt |
| Dimensions LxAxP cm | 750x110x123 | 750x110x123 | 750x110x123 |
| Weight | 565 Kg | 650 Kg | 650 Kg |
| ESTIMATED PRODUCTION | |
|---|---|
| Concrete Polishing 7 step | 20-30 m2/h |
| Concrete Grinding 1 step | 90-110 m2/h |
| Terrazzo Polishing 5 step | 20-25 m2/h |
| Resin Removal 1 step | 80-130 m2/h |
| Paint Removal 1 step | 80-130 m2/h |
| Marble Polishing 5 step | 8-13 m2/h |
| Granite Polishing 7 step | 5-7 m2/h |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
| Model | HRC 750 SX/RX/AD |
|---|---|
| Volume | 1.80 m3 |
| Size | 88x163x155 cm |
| Weight | 700 kg |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
