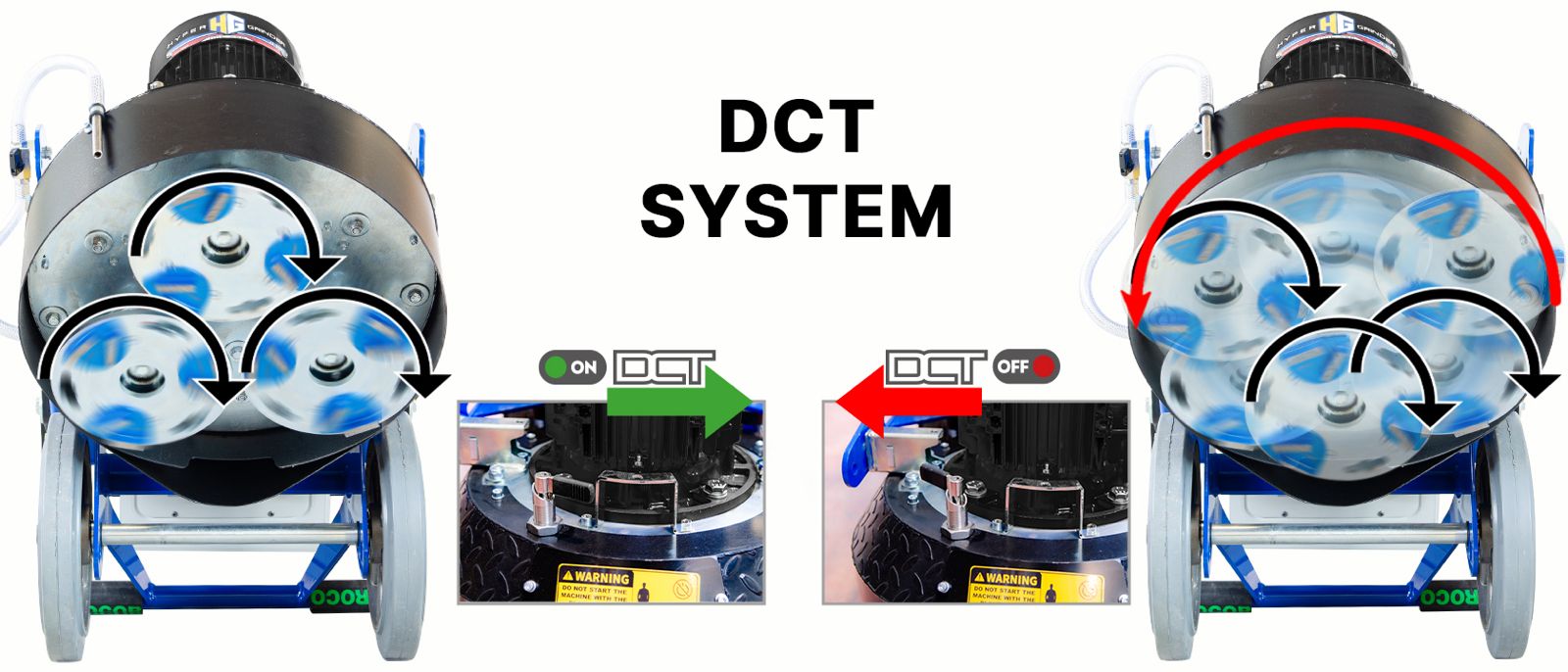

The DCT system allows you to choose to smooth use only using the rotation of the tools (DCT ON mode), or with the classic complete rotation of the planetary (DCT OFF mode).

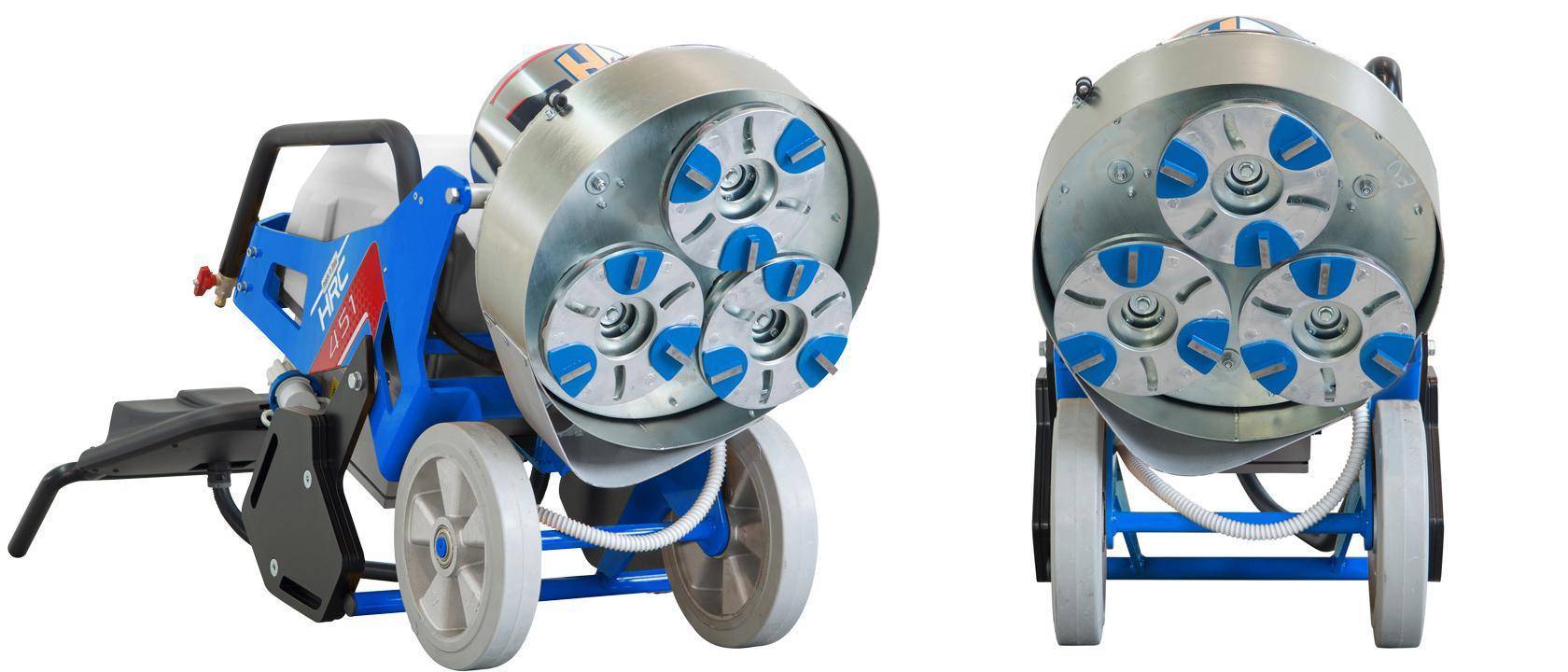

The new range of HRC grinders introduces the exclusive DCT transmission. Thanks to this innovative function, it is possible to lock the rotation of the main plate and allow only the rotation of the tools simply by pressing a lever on the planetary (DCT ON). With the DCT in the ON position you gain higher speeds of the satellites for a more aggressive and effective grinding.
The DCT ON system is ideal for glue and resin removal work, surface preparation and floor levelling. Turning off the DCT (DCT OFF) lever will cause the main plate to rotate in the direction of the tools. In DCT OFF mode the planetarium is counter-rotating for general polishing, marble polishing, natural stone and concrete.
DCT ON: Only allows rotation of the tool holder satellites, this option makes HRC extremely effective and aggressive for the preparation, removal of glues and resins, for leveling the surface and for rapid exposure of the concrete aggregate.
DCT OFF: Allows rotation of the planetary in counter-rotating mode, ideal for sanding and polishing concrete, marble and natural stone floors.
| Model | HRC 450 | HRC 450 USA | HRC 450 VS | HRC 450 VS USA |
|---|---|---|---|---|
| Motor HP max | 2900 | 1900 | 3000 | 1900 |
| Drive Inverter | - | - | 4 kW | - |
| Volt | 220 | 115 | 220 | 115 |
| Hertz | 50 | 60 | 50/60 | 60 |
| Motor speed rpm | 800 | 600 | 600-1000 | 400-900 |
| Working width | 450mm | 450mm | 450mm | 450mm |
| Tools Dimension | 3x200mm | 3x200mm | 3x200mm | 3x200mm |
| Liquids Tank | 46 lt | 46 lt | 46 lt | 46 lt |
| Dimensions LxAxP cm | 120x125x47 | 120x125x47 | 120x125x47 | 120x125x47 |
| Weight | 190 Kg | 190 Kg | 200 Kg | 200 Kg |
| ESTIMATED PRODUCTION | |
|---|---|
| Concrete Polishing 7 step | 7-10 m2/h |
| Concrete Grinding 1 step | 30-35 m2/h |
| Terrazzo Polishing 5 step | 6-9 m2/h |
| Resin Removal 1 step | 30-60 m2/h |
| Paint Removal 1 step | 30-60 m2/h |
| Marble Polishing 5 step | 5-8 m2/h |
| Granite Polishing 7 step | 4-6 m2/h |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
| Model | HRC 450 |
|---|---|
| Volume | 0.72 m3 |
| Size | 120x80x75 cm |
| Weight | 150 kg |
