Equipped with three heads of ø950mm, 9 tool plates of ø340mm for a total working width of 2720mm.

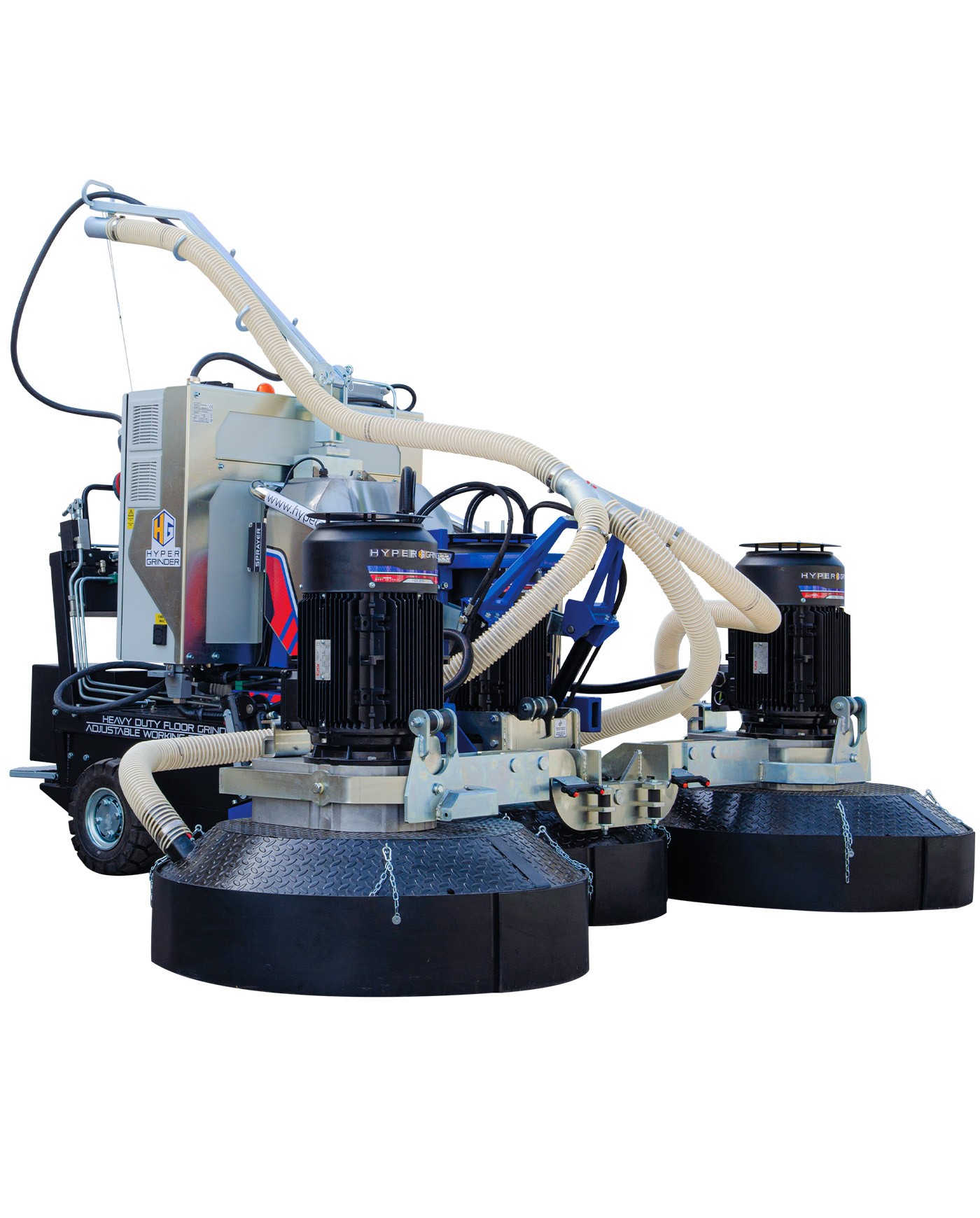

REMOTE-CONTROLLED PROFESSIONAL GRINDER WITH 3 PLANETARY HEADS
A revolutionary grinding machine made in Italy, equipped with three heads of ø950mm and nine tool carrier plates of ø340mm for a total working width of 2720mm, the HGE 2700 is the advanced solution for large surface processing. It ensures impeccable sanding and impressive performance in terms of productivity and quality.
| Model | HGE 2700 RX |
|---|---|
| Motor | 3 x 25 HP |
| Drive Inverter | 18.5 kW |
| Volt | 380-480 |
| Hertz | 50/60 |
| Tools speed | 300-1300 rpm |
| Working width with 3 heads | 2720mm |
| Working width with 2 heads | 1850mm |
| Working width with 1 head | 950mm |
| Tools size | 9x340mm |
| Water tank | 80 lt |
| Dimensions WxHxL cm | 272x158x296 |
| Weight | 2104 Kg |
| ESTIMATED PRODUCTION | |
|---|---|
| Concrete Polishing 7 step | 65-143m2/h |
| Concrete Grinding 1 step | 520-780m2/h |
| Terrazzo Polishing 5 step | 65-143m2/h |
| Resin Removal 1 step | 520-780m2/h |
| Paint Removal 1 step | 520-780m2/h |
| Marble Polishing 5 step | 65-143m2/h |
| Granite Polishing 7 step | 52-78m2/h |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
| Model | HGE 2700RX | head 2 | head 3 |
|---|---|---|---|
| Volume | 5.2m3 | 2m3 | 2m3 |
| Size | 268x117x173 cm | 123x123x136 cm | 123x123x136 cm |
| Weight | 1512 Kg | 419 Kg | 419 Kg |
